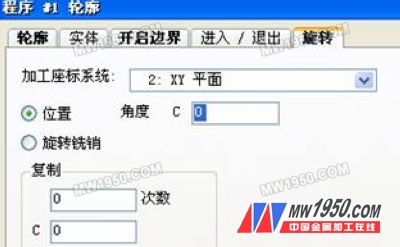

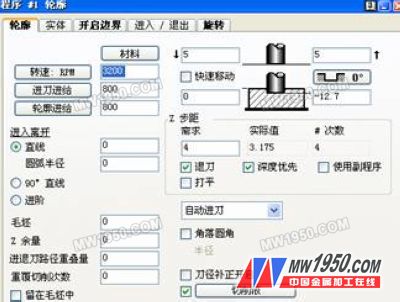

â— Drag the tool and contour machining strategy to the process table for machining parameter setting: the arrival point position, the machining start point, and the tool speed and feed. It should be noted that in GibbsCAM programming, each operation needs to correspond to the corresponding CS system, otherwise the calculated program is wrong, so you need to select the "machining coordinate system".

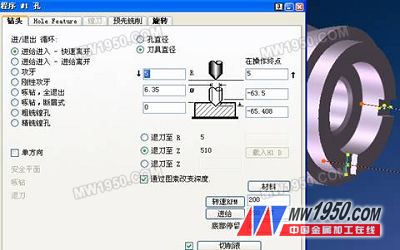

â— Program the drilling in the same way:

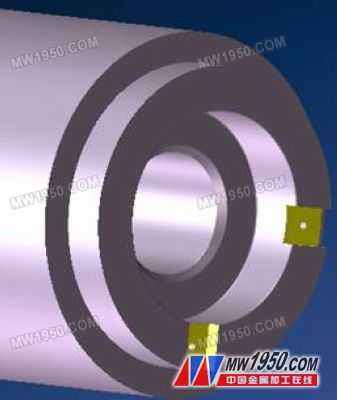

â— Operation simulation results:
â—The above is the result of C-axis machining. There is also a U-shaped groove on the cylindrical surface. This U-shaped groove can also be made by the common end mill, but we can also see through the drawing, the end mill The result is not as ideal as a forming knife, so we can use a forming knife to machine the U-shaped groove. The same operation as above, first establish a coordinate system CS:

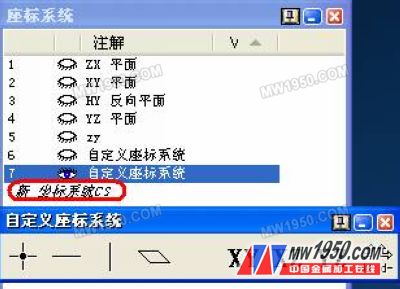

â— First click on the coordinate system icon
, then click: "New Coordinate System" to define a new CS.

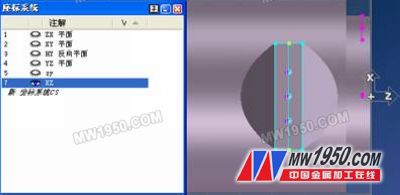

â— New coordinate plane XZ plane:
| Previous page | 1 | 2 | 3 | 4 | Next page |
